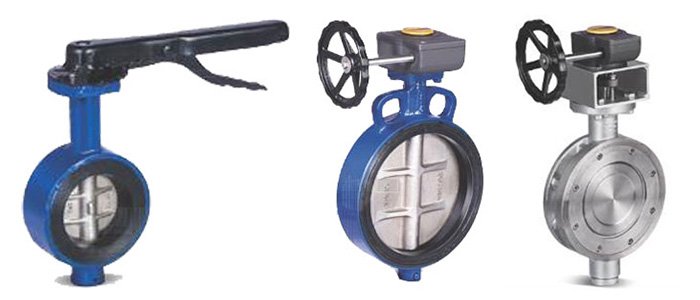

Manual Butterfly Valves

Download Catalog Request Quote

"Aryan Enterprises" valve, with integrally moulded elastomers body sleeve are designed for longer life and trouble free performance. Integrally moulded sleeve ensures perfect resistance against friction between the disc and the sleeve.

Features

• Wide Size range (40DN to 300DN)
• Operated by Lever or Gae Box
• 90 dge opening and closing operaition
• Cast iron Boyd with powder coating.
• Epoxy Coated Ductile Iron disc.
• Wafer type Connection

Specifications

• Sizes: DN50…DN900
• Nominal pressure: PN16, P N25
• Medium Temperature: -10 ~ +100 Maximum
• Body Material IS: Cast Iron / WCB / CF8 / CF8M
• Stem Material: ASTM A276, GR SS 410 / SS304 / SS316
• Disc Materiald: Epoxy Coated Ductile Iron / CI /CF8 / CF8M
• Lever: MS. / SS
• Leakage Rated: No visible leakage
• Medium Typed: Water / AIR/ OIL
• Flange standard: IS 1538
• Shell Test pressure: 24bar
• Seal Test pressure: 17bar
